Pumping delicate food products

Many types of pump are suitable for use in the food industry, including rotary lobe, rotary piston, reciprocating positive displacement, progressing cavity, peristaltic hose and air-operated double diaphragm designs. However, traditional pumps can be expensive to maintain while lobular pumps have low flow rates. In addition, using progressive cavity pumps can break the product, while double diaphragm pumps result in a low pressure drop.

Having seen the results of using the wrong pump for the wrong job, HRS went back to the drawing board to develop a pump which could handle very delicate and viscous food stuffs without damage while working at high pressure in heavy duty applications in the food and pharmaceutical industries. The result was a purpose designed reciprocating positive-displacement pump: the HRS BP Series Piston Pump.

Positive displacement pumps have an expanding cavity on the suction side of the pump and a decreasing cavity on the discharge side. Liquid flows into the pump as the cavity on the suction side expands and is forced out of the discharge side as the cavity collapses. The BP Series features a hygienic design which incorporates a separator fitted between the piston and the hydraulic chamber to ensure that there is no contact between the product chamber and the hydraulic oil, ensuring no oil comes into contact with the product.

With an adjustable flow, which can range from a minimum of 80 gallons/hour to a maximum of 5,280 gallons/hour, and features a high pressure drop of up to 435 psi, it is suitable for a wide range of high viscosity fluids that are shear sensitive and which contain large particulates . Clap valves allow pumping of whole fruits or vegetables, and an alternative version with a pneumatic cylinder can be supplied for low pressure applications of less than 5 bar.

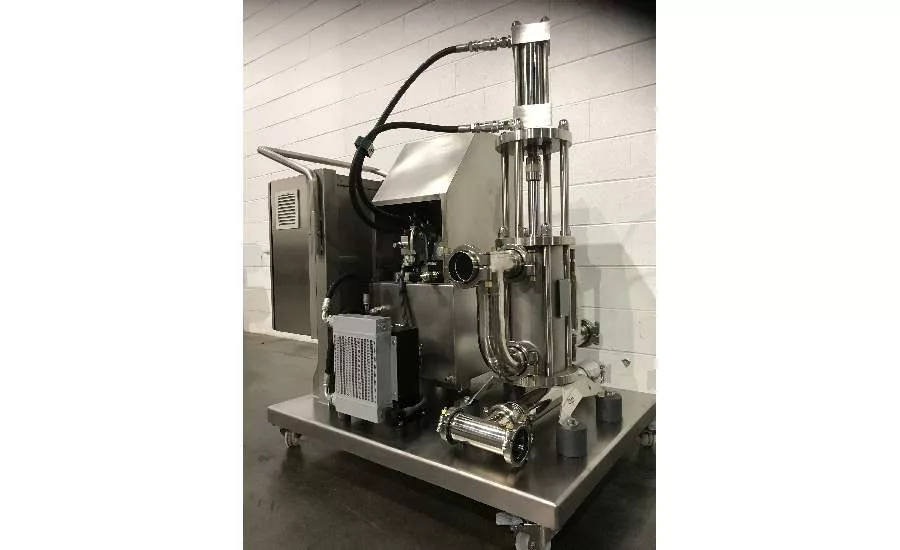

In order to allow food manufacturers to see the benefits for themselves, we created the HRS BPM Series. The BPM is a mobile version of our standard BP Series pump but is mounted on a mobile skid unit for easy movement, allowing it to be used across multiple production lines and locations. This makes it popular with food manufacturers producing short runs of specialist products and numerous trials, as they can enjoy the benefits of a BP Series pump without the need to invest in a dedicated pump for each line, resulting in considerable capital savings.

For more information visit www.hrs-heatexchangers.com.
